Electrical Data
Hall type
| Hall type | |
| Power supply | 9-36Vdc |
| Power supply current | 22mA |
| Maximum allowance overload voltage | 45Vdc |
| Reverse polarity voltage(max) | -10Vdc |
| Output linearity tolerance | <±0.1V |

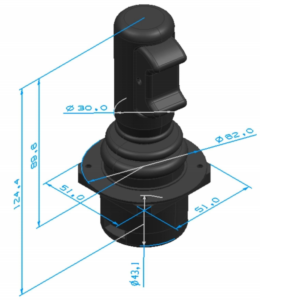

Mechanical Features
| Travel angle | ±20° |
| Operating type | Spring return |
| Breakout force | 2.5N |
| Operating force(max) | 5.5N |
| Maximum allowable force | >300N |
| Expecting life | >1million cycles |
| Weight | 400g |
Environmental Data
| Operating temperature | -30°C~+70°C |
| Storage temperature | -40°C~+85°C |
| Protection level | IP65(Above the flange ) |
